The STORiM series monitors feature stainless steel waterway, high quality and reliable drive and control systems with ATEXand Fi approvals, excellent structural design and waterway modeling technology to ensure overall monitor performanceand meet the requirements of a variety of industrial environments, including: refineries, chemical plants, hangars, loadingdocks, tanker berths, rall yards, offshore platforms, open yards, mining operations, and other hazardous locations.

Product Features

· Flow rates up to 3000 LPM for the 3850and up to 7600 LPM for the 3886.

· Stainless steel waterway provide maximumcorrosion protection, extending product lifeand reducing life cycle costs.

· Superior fluid flow technology and flowmodeling techniques ensure high reliability andeffective spray distances.

· Advanced motor drive and control technologyensures reliable operation of the fire monitor.

· ATEX and FM approvals for Class l, Division1, Groups B, C and D; Class l, Zone 1, GrouplB+H2; Class ll/ll , Division 1, Groups E, F andG Hazardous Locations.

· The control system has a remote start fire pumpinterface, which can remotely start the fire pump.

· Support local, remote, wireless and other control methods, and canbe manually operated under power shortage.

· Communication through optical fiber network has double securityguarantee.

· By operating the fire monitors and fire valves at a safe distance away fromdangerous places, the personal safety of operators is guaranteed.

Local Monitor ControllersThe main function of the local monitor controller is to drive and control the movement of the fire monitor, it also has anauxiliary power supply, which can be used as an external signal power for the electric valve's feedback signals. The controsignal sent by an operation control panel (0CP) controls the movement of the fire monitor to the designated position, and thefire monitor sprays water or foam to extinguish the fire. Power supply is 380 VAC 50/60H (110/120VAC / 50/60Hz or 415 VAC50/60Hz optional).

Centralized Console In Central Control Room

The centralized console of the central control room is arranged in the fire control room, which can remotely control themonitor on site and control 2 monitors at the same time, and select the specified monitor by the ID of the monitor. The powersupply is 220VAC 50Hz/60Hz.

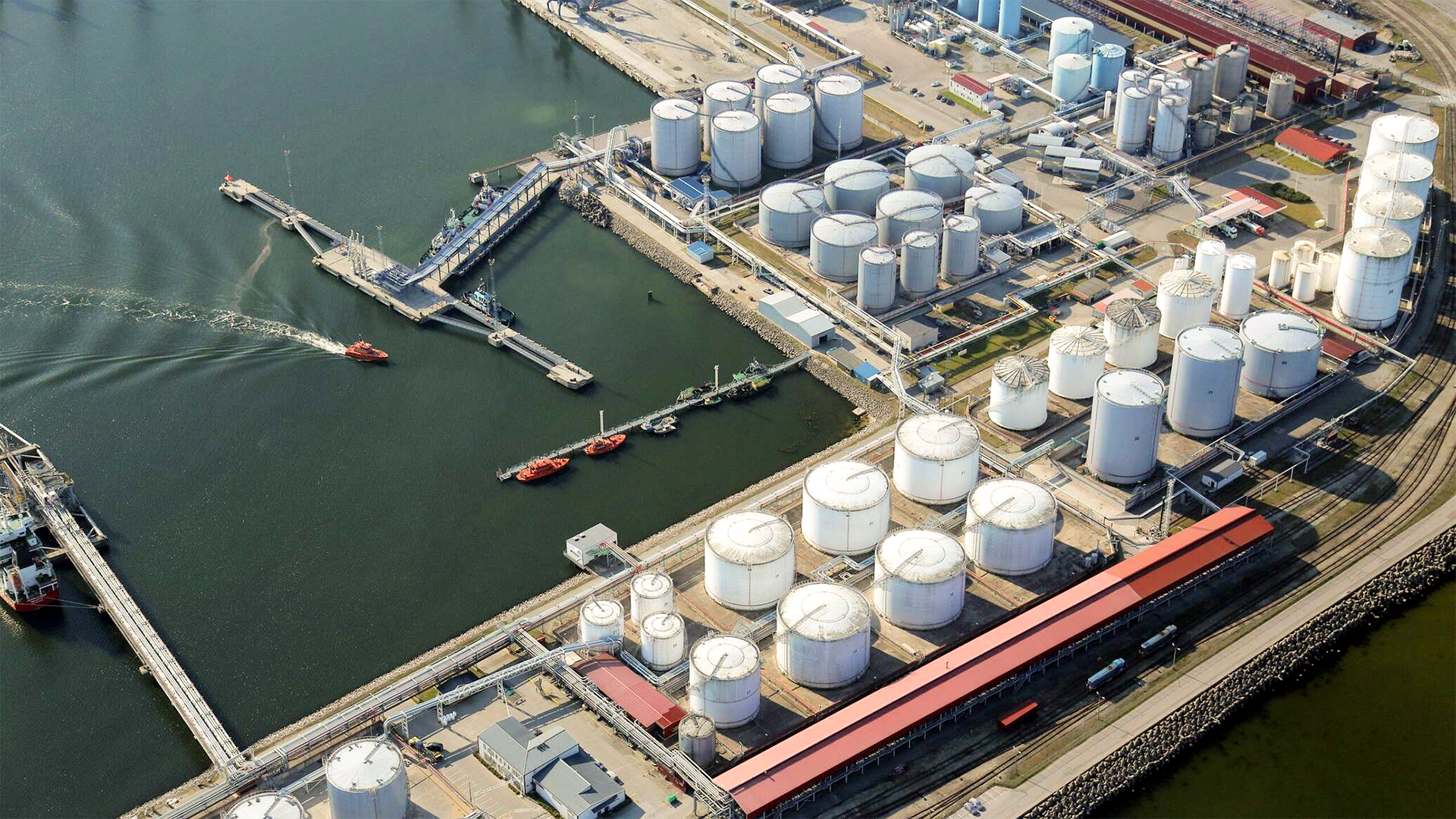

Typical Applications Crude Oil Handling Termina !

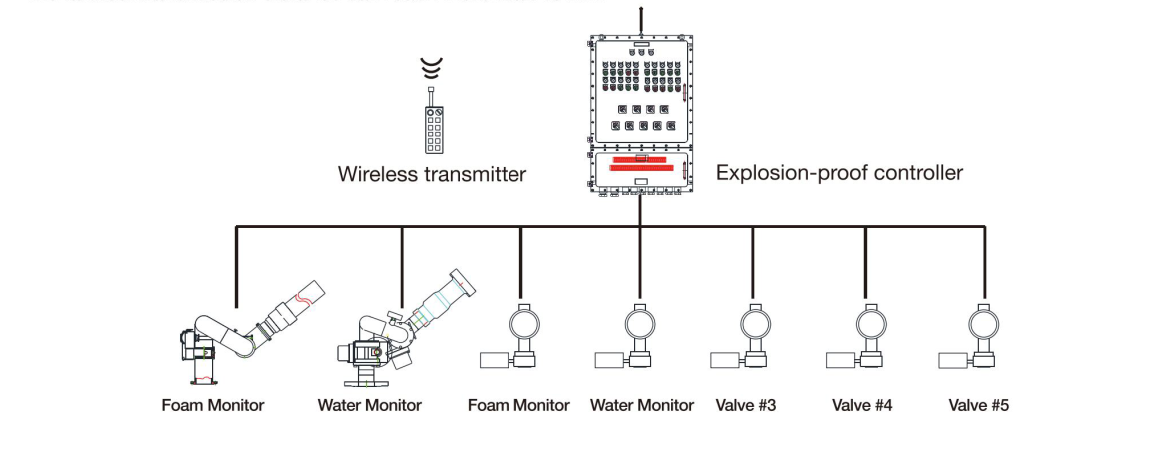

The monitors at the crude oiloading dock are installed on monitor towers, one water monitor and one foam monitor permonitor tower. Each local monitor controller can control one water monitor, one foam monitor, and five electric valvesSupport local control monitor, wireless remote control and remote control from fire console. Support fiber optic network.the farthest transmission distance can reach more than 10 Km.

When the number of monitors is 8 or more, the local monitor controllers at the crude oil terminal can form a fiber ringnetwork. Each fiber ring network can connect and control up to 32 explosion-proof controllers and 64 monitors.

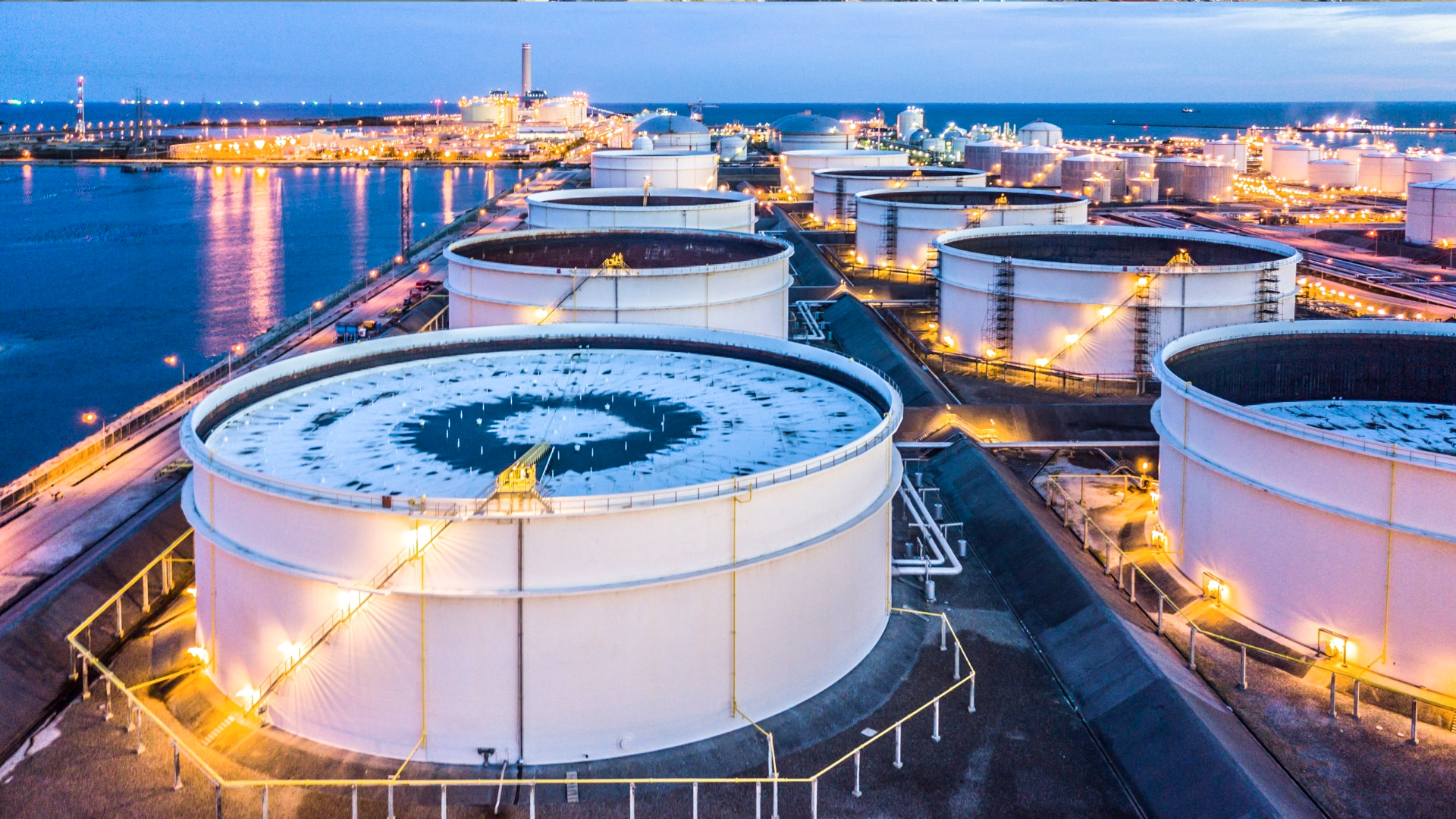

Typical Applications Flammable liquid tank area

Each local monitor controller can control two water monitors or two foam monitors and two electric valves. it supports localmonitor controller, wireless remote control and remote control from fire console. lt also supports fiber optic network and thelongest transmission distance can reach more than 10 Km.

When there are multiple storage tank farms, the local monitor controllers form a fiber ring network in each storage tank farmby the communication controllers. Each fiber ring network can connect and control up to 32 explosion-proof controlers and 64 monitors.

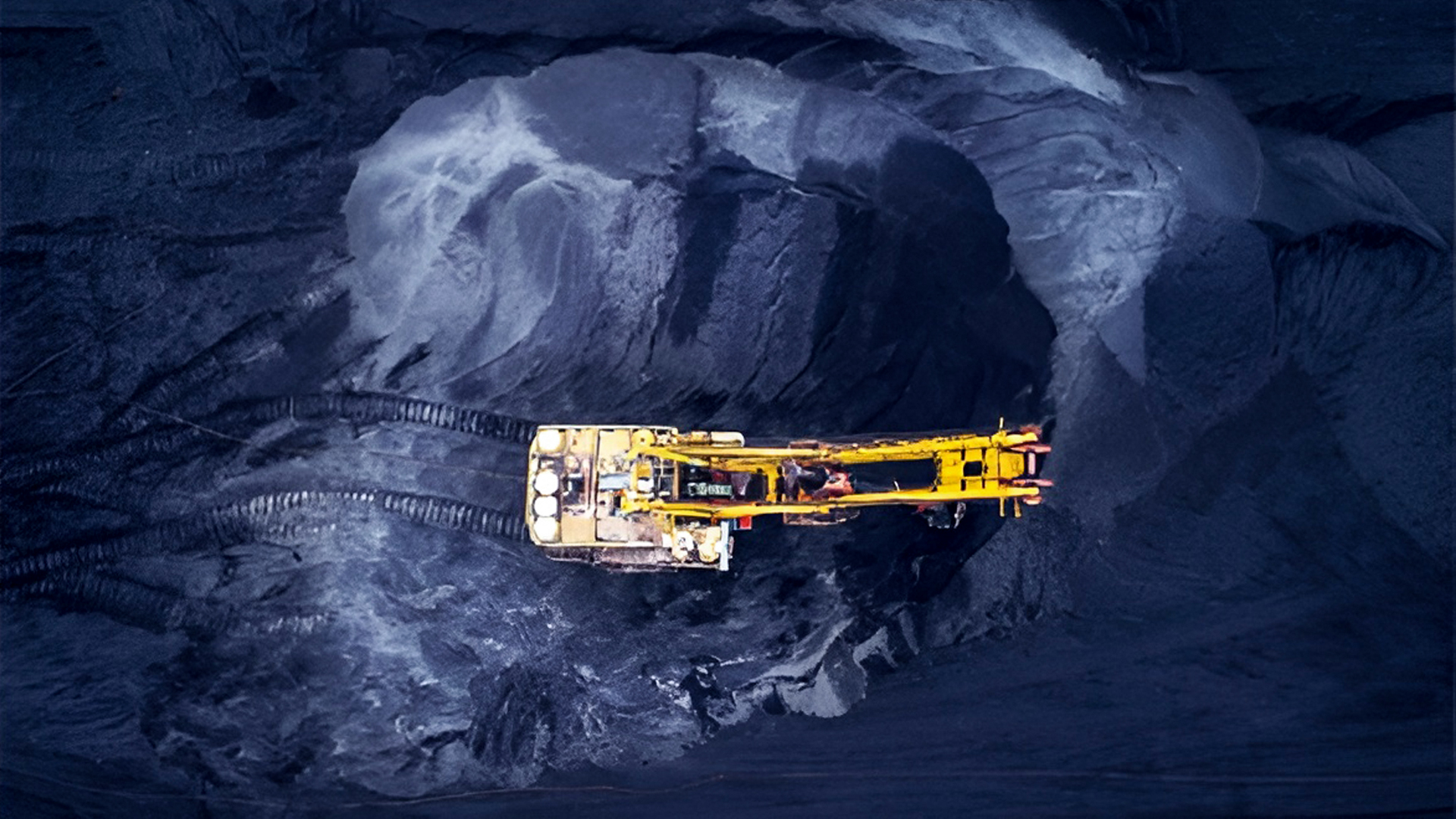

Typical Applications Indoor coal yard

Indoor coal pile yard is equipped with monitors according to the design requirements and each local monitor controllercan control two monitors and two electric valves. lt supports local monitor controller, wireless remote control and remotecontrol from fre console. Also support fber optic network, the longest transmission distance can reach more than 10 Km.
