S Series Nozzles

S series nozzles are resistant to high temperature and mechanical impact by the reinforced design.The special waterway ensures excellent discharge performance with high stability. Even at 3.5 barsoperating pressure, the nozzle can work stably and reliably, This family of nozzles has multiple flowoptions, and the flow can be adjusted according to the scene of the fire

Product Features

· At rated pressure, the Model 1108 flow up to 480 lpm and the Model 1113 flow up to 780 lpm.

· Rated pressure is 6 bar, optional 7 bar or5 bar.

· High risistance to the mechanical impact and thermal shock by use of the lightweight aluminum alloy pistol grip andhandle, not deformed, and more resistant to high temperatures than plastic grips and handles.

· Spinning teeth make the fog spray better. Easy to oprate & repair.

· Compatible with Quick-Attack foam tube style F3008 and F3016.

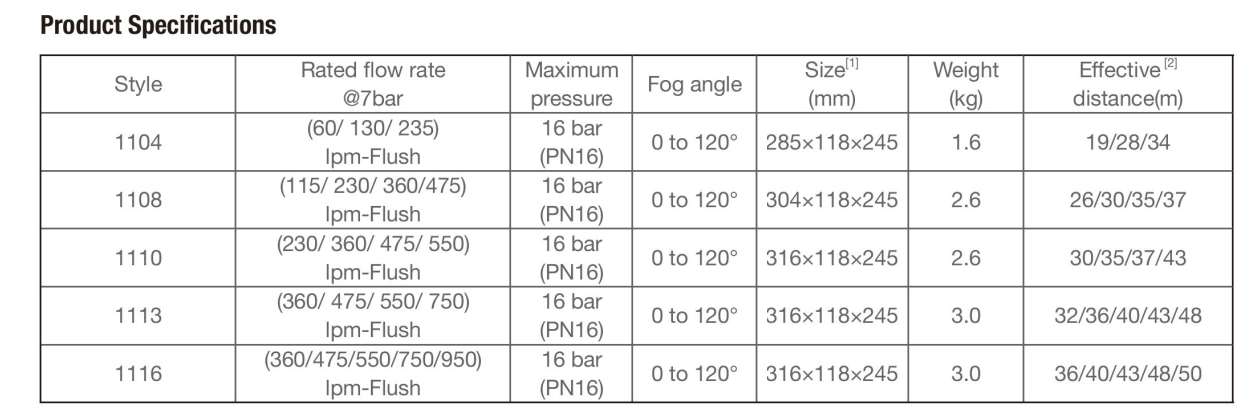

· Product Specifications

Note!1:The weights and dimensions of the above Nozzles are for KYKA. The weights and dimensions of Nozzles may vary when diferent inlet

types and dimensions are used.

Note [2]: The efiective distance test should be performed at an elevation angle of 32 degres under no wind conditions and straight stream

pattern.
